DC 5525 UL2464 16AWG Wire Harness

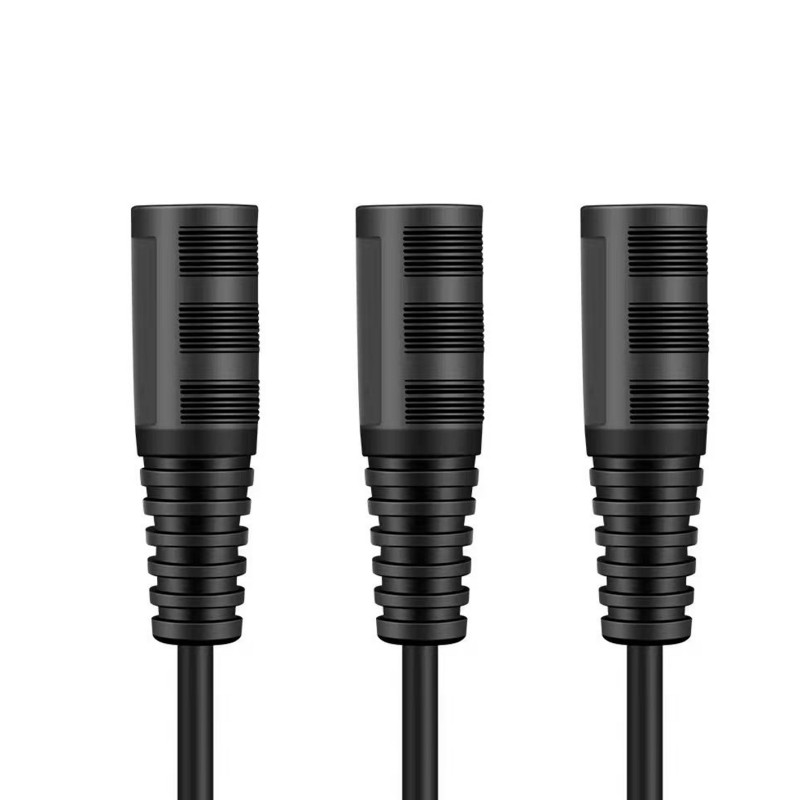

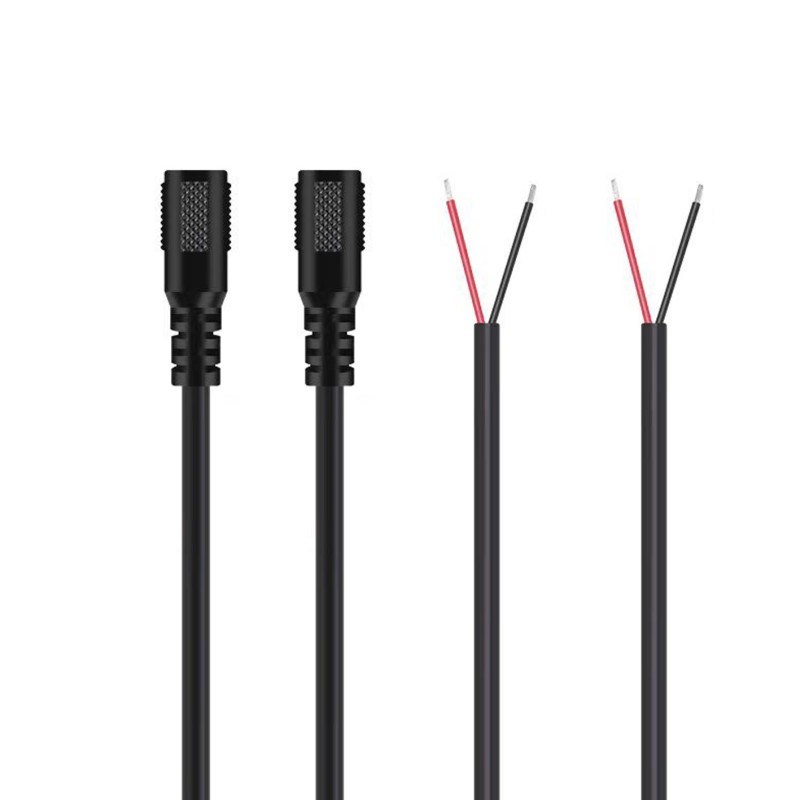

Its core components include a DC5525 female connector and a UL2464-certified 16AWG 2-core wire: the former has an interface specification of 5.5mm outer diameter and 2.5mm inner diameter, with a housing made of flame-retardant ABS plastic and terminals constructed from nickel-plated copper. It enables smooth plugging and unplugging with secure locking performance, resists loosening due to vibration, and boasts a plug-in lifespan of over 5,000 cycles; the latter uses stranded oxygen-free copper conductors with a rated current-carrying capacity of 5–6A. Its PVC insulation and sheath meet the VW-1 flame retardant rating, with a temperature resistance range of -20℃~105℃ and low signal transmission loss.This cable meets the power supply requirements of equipment such as industrial servo drives, high-definition PTZ cameras, car power inverters, and high-power LED lamps, featuring both durability and versatility.

Feature：

The DC5525 UL2464 16AWG 2-core cable features stranded tinned copper conductors, delivering excellent conductivity, low resistance and oxidation resistance. It is ideal for 12–24V/≤10A medium-power devices with low voltage drop and heat generation. Certified to UL2464 and VW-1 flame-retardant standards, its PVC insulation and sheath resist acids, alkalis and abrasion, meeting export compliance requirements. The DC5525 connector ensures stable contact, is compatible with DC5521 female ports and enables easy plugging and unplugging. Flexible and easy to process, the cable suits narrow spaces and frequent bending scenarios. It is also highly universal, easy to source, stable for long-term use and cost-effective for maintenance.

Application

This cable boasts a wide range of applications. It can supply power to medium-power electronic devices such as laptops, LED large screens/industrial lamps, security speed domes, industrial cameras, small UPS/inverters and medical monitors. It is suitable for industrial automation and control scenarios including PLCs, servo drives, power supply for sensors/actuators, DC power distribution in automated production lines and medium-power wiring harnesses inside equipment. It also fits commercial and engineering wiring needs like LED lighting systems in shopping malls/buildings, DC module power supply for communication base stations, centralized power supply for computer room equipment and power supply for outdoor advertising screens. Additionally, it meets the usage requirements of special scenarios such as devices requiring frequent plugging/unplugging/moving, wiring in narrow spaces, as well as export-oriented equipment and engineering projects with flame-retardant and environmental protection requirements.

Electro-Optical Characteristics

Deliver,Shipping And Serving

1.The fast response of your inquiry.

2.We provide OEM, ODM service, the details of product can be made as your requirement.

3.Strong technical force and excellent sales team to provide all-round service before sales and after sales.

4.Use selected raw materials, reliable quality and competitive price.

5.Over 10 years professional manufacturer experience of assembly connect cable in China.

6.Our factory is lS09001 certified.

7.Complete automatic equipment, high production efficiency and punctual delivery time.

8.Each of our products has been 100% instrumentally-tested to ensure the quality and function.

9.Small orders are available

10.Our products have extensive use and enjoy a wide market all over the world.

11.For the sake of customers, strive to achieve a win-win situation, hope to establish a long-term cooperative relationship.
