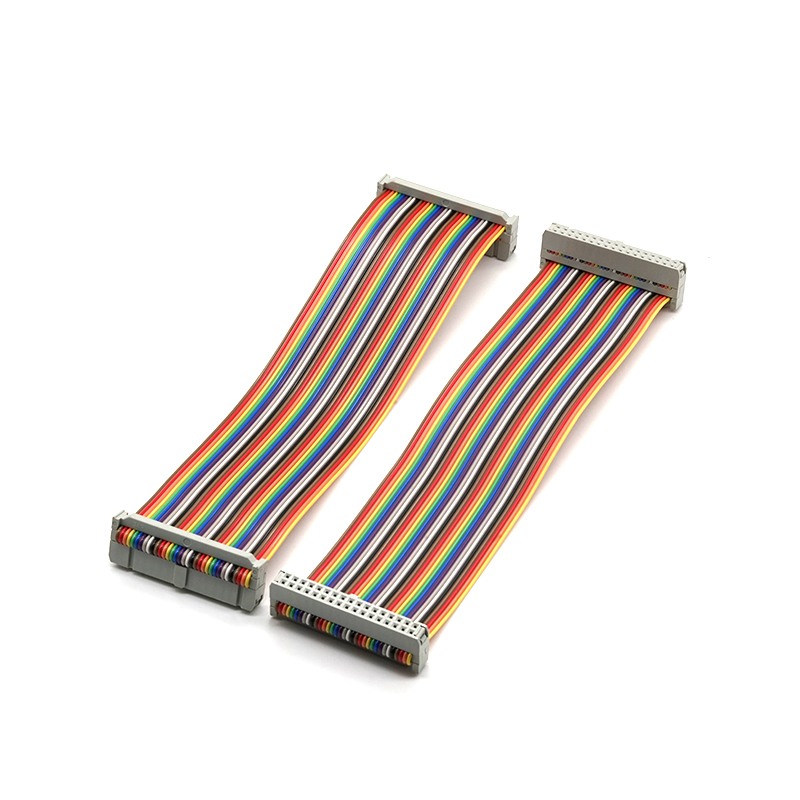

If you've ever found yourself asking, "How far can my data reliably travel through an IDC flat cable before signal integrity becomes a problem?"—you're not alone. This is one of the most common and critical questions we encounter from engineers and procurement specialists. Pushing these cables beyond their effective limits can lead to data errors, system instability, and costly redesigns. At JYE, we understand this frustration intimately, which is why we've engineered our cables to not just meet but exceed standard expectations. Let's dive into the factors that define maximum reliable length and how JYE's specifications provide a robust solution.
What Factors Limit the Signal Length in Practice
The maximum length isn't a single magic number. It's a balance governed by several electrical factors. Capacitance and crosstalk increase with length, degrading signal quality. The drive strength of the connected circuitry and the acceptable data rate or clock speed are equally crucial. For instance, a high-speed digital signal will have a much shorter reliable distance than a simple low-frequency control signal. Using a generic IDC flat cable for a demanding application is where many face unexpected performance drops.
How Do JYE Technical Specifications Extend Performance Limits
We at JYE tackle these limitations head-on with precision design and superior materials. Our focus is on providing a IDC flat cable that offers greater consistency and longer reliable distances for your applications. Here are the key parameters that make the difference:
Premium HDI Fin Pitch Conductors: Minimizes signal skew and attenuation.
Enhanced Shielded Options: Provides superior protection against EMI, crucial for longer runs in noisy environments.
Low-Capacitance Dielectric Material: Reduces signal degradation, allowing for clearer data transmission over distance.
Precision 90° or Straight Strain Relief Connectors: Ensures stable contact integrity, preventing intermittent faults.
The impact of these features is best seen in a comparative context. Consider the performance of a standard cable versus a JYE engineered solution for a typical 26AWG application:
| Feature | Generic IDC Flat Cable | JYE Performance-Grade Cable |
|---|---|---|
| Recommended Max Length (Data) | ~ 0.7 meters (2.3 ft) | Up to 1.5 meters (4.9 ft) |
| Recommended Max Length (Power) | ~ 2 meters (6.5 ft) | Up to 3 meters (9.8 ft) |
| Crosstalk Reduction | Baseline | >15% Improvement |
| Voltage Drop Over 2m | Significant | Minimized by superior conductivity |
Why Is Cable Construction More Critical Than Just Length
Thinking only in terms of meters can be misleading. The true measure of a reliable IDC flat cable is how it's built. A longer cable with poor construction will fail faster than a shorter, well-made one. This is the core of our philosophy at JYE. Our cables feature consistent conductor spacing, high-purity copper, and durable insulation that work together to maintain signal strength. This robust construction ensures that when you specify a JYE IDC flat cable, you are investing in predictable performance across every inch of its length, giving you a wider safety margin in your designs.
Where Can You Find a Guaranteed Solution for Your Long-Run Needs
The search for a dependable IDC flat cable that won't let you down at critical lengths ends here. At JYE, we don't just sell cables; we deliver reliability engineered into every detail. Our products are designed to solve the exact pain point of signal integrity over distance, providing you with the confidence to finalize your designs without second-guessing your connectivity.
Ready to Specify Cables That Push the Limits Without Compromise? Don't let signal length uncertainties slow down your project timeline. Contact us today with your application requirements. Our technical team is ready to help you select the optimal JYE cable solution that guarantees reliability from the first signal to the last. Reach out for a consultation or a detailed quote—let's build something reliable together.
