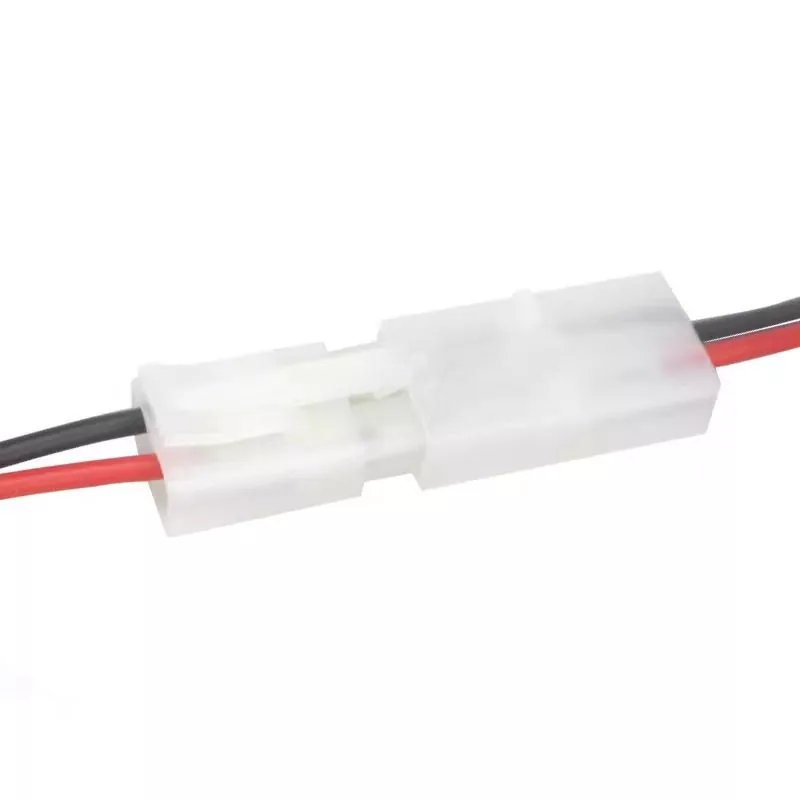

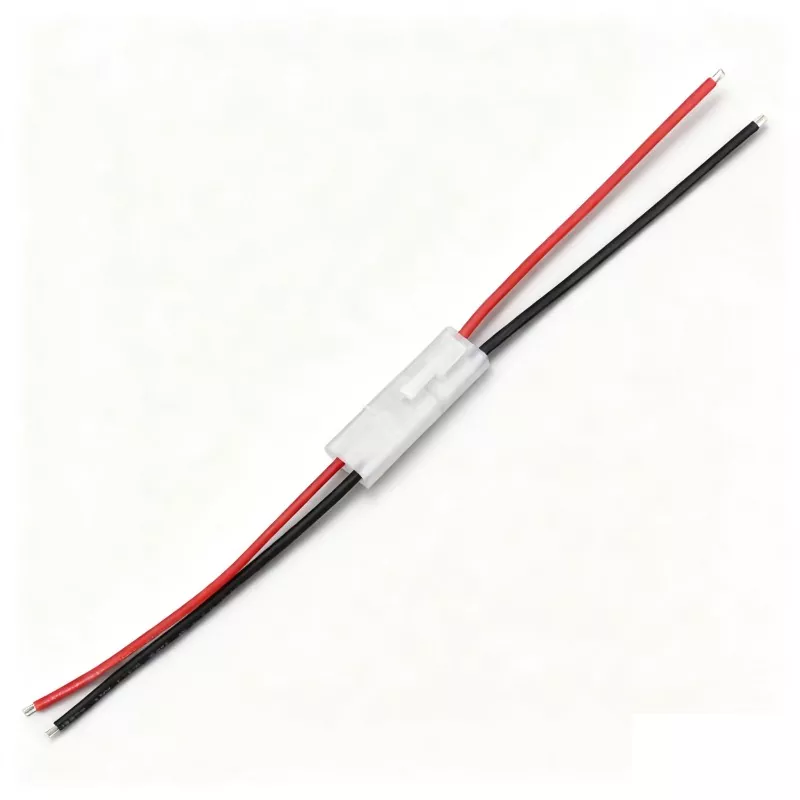

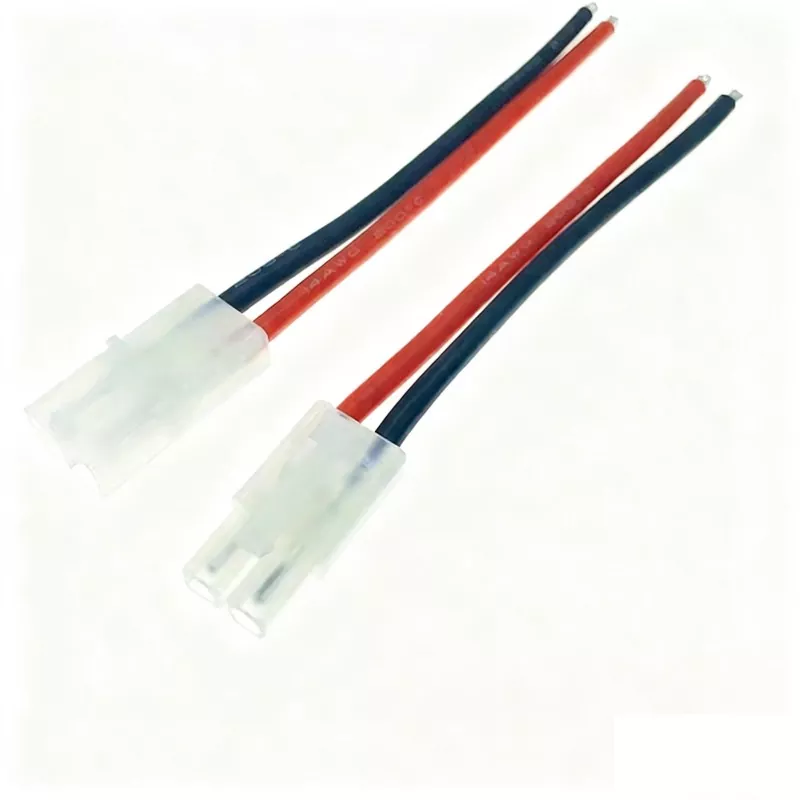

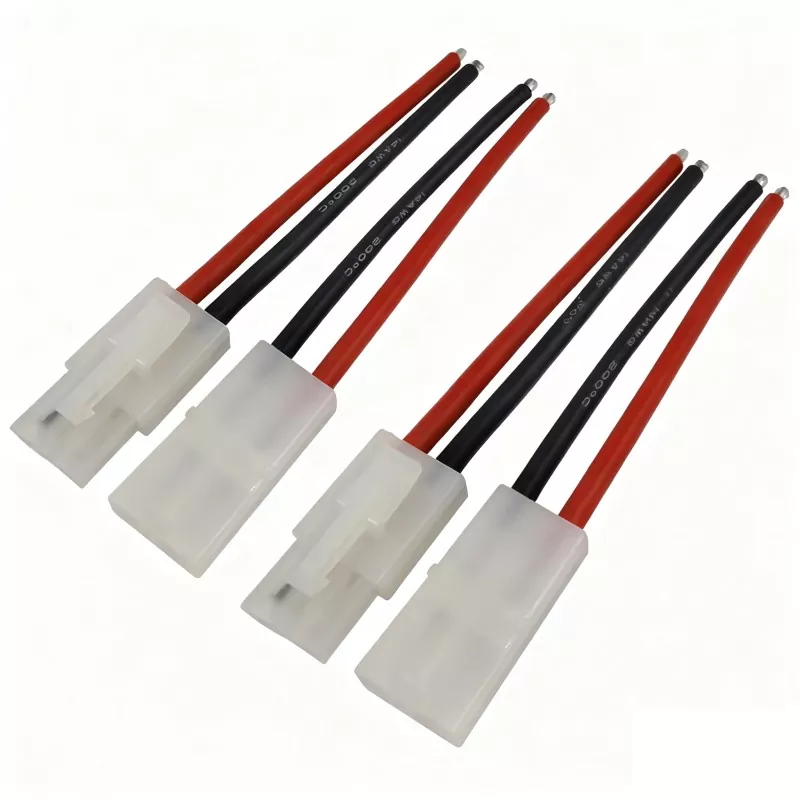

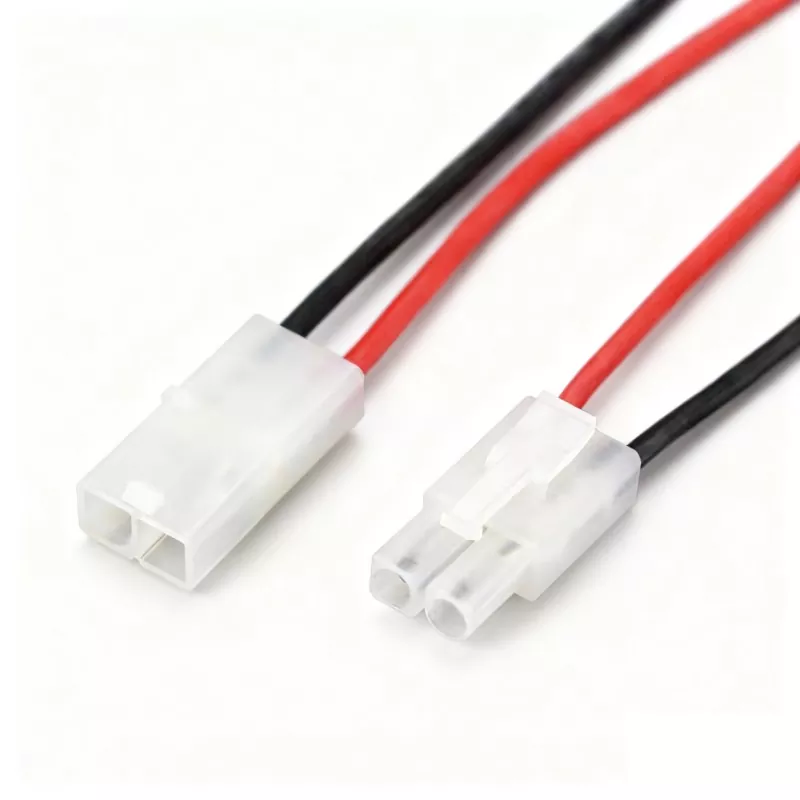

Tamiya L6.2 2P UL3239 16AWG Silicone Wiring Harness

The Tamiya L6-2P UL3239 16AWG wiring harness is a custom-engineered connection cable focused on high reliability, consisting primarily of a 2-pin Tamiya male-female mating connector with a 6.2mm pitch and UL3239 16AWG silicone wire. Its connector features an insulated housing combined with metal terminals for stable, anti-loosening connections, making it suitable for power supply needs in both industrial and household appliance scenarios. The wire uses stranded tinned copper conductors for excellent oxidation resistance and conductivity efficiency, while its silicone rubber insulation layer offers a wide temperature resistance range from -60℃ to 200℃. Certified to UL standards and compliant with RoHS environmental directives, the product boasts high voltage resistance, corrosion resistance and superior flexibility, enabling it to withstand harsh operating conditions. It is widely used for internal wiring in household appliances such as microwave ovens and air conditioners, high-temperature and high-voltage wiring in industrial equipment including frequency converters and control cabinets, as well as signal transmission in LED lighting fixtures and electronic instruments, serving as a reliable connection solution for high-temperature and high-demand environments.

Feature：

This wiring harness is core-equipped with Tamiya L6-2P connectors, adopting a 2-pin male-female mating design with a 6.2mm pitch. The insulated housing paired with metal terminals ensures stable and secure connections. It is wired with UL3239 16AWG silicone cables, whose conductors are stranded tinned copper wires of 26/0.254mm or 26/0.26mm specifications, delivering excellent oxidation resistance and high conductivity efficiency. The insulation layer is made of 0.5mm-thick silicone rubber, boasting a wide temperature resistance range from -60℃ to 200℃. The finished outer diameter of the cable is precisely controlled within a tolerance of 2.5mm±0.1mm, with a rated temperature of 200℃ and a rated voltage of 600V, fully complying with UL safety standards and RoHS environmental directives. The product is available in custom colors including red, black, white and blue, enabling quick and accurate polarity identification during on-site wiring.

Application

Boasting core advantages of high voltage resistance, high temperature resistance and high reliability, the Tamiya L6.2mm 2P UL3239 16AWG silicone wiring harness is widely suitable for wiring needs of equipment across multiple fields. It can serve as internal high-voltage connection cables for household appliances such as microwave ovens, ovens and air conditioners, high-temperature and high-voltage wiring for industrial equipment including frequency converters, transformers and control cabinets, internal lead wires for high-temperature lighting fixtures like stage lights and industrial spotlights, as well as high-voltage signal transmission lines for medical devices and testing instruments.

Electro-Optical Characteristics
