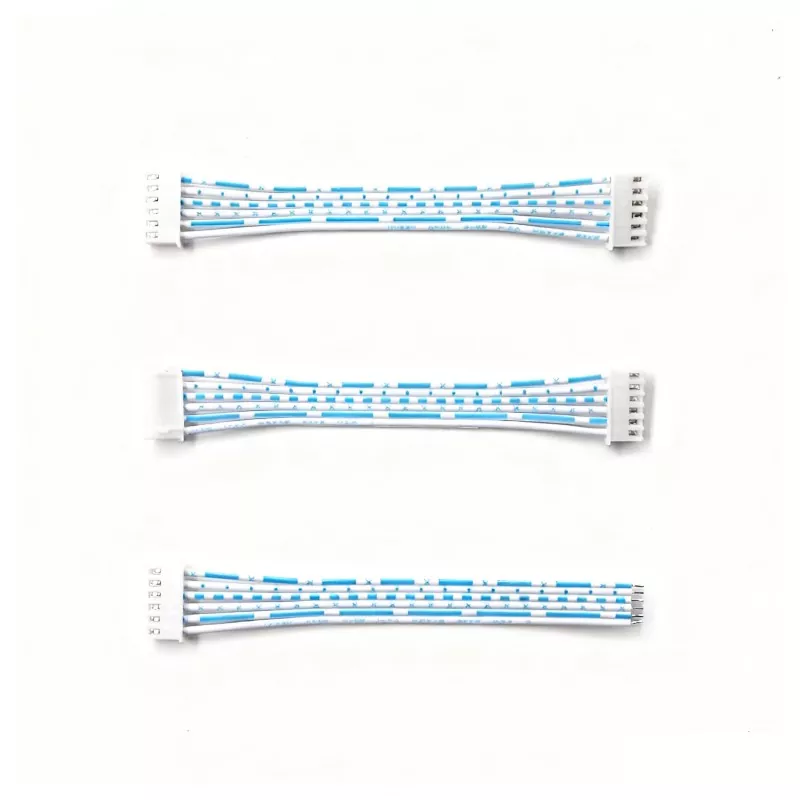

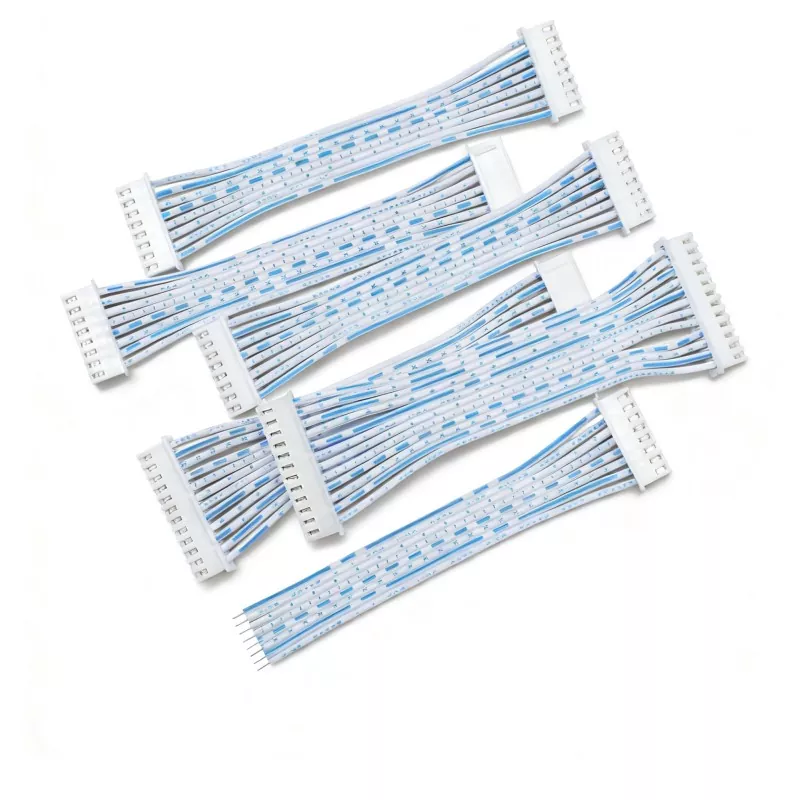

XH2.54 UL2468-24AWG Blue-And-White Flat Cable

The JYE XH2.54 UL2468-24AWG blue-and-white flat cable is a standardized low-voltage signal transmission harness. It adopts 24AWG stranded tinned copper conductors and environment-friendly PVC insulation layers, paired with XH series connectors with a 2.54mm pin pitch, and is compatible with multi-specification requirements ranging from 2P to 16P. The blue-and-white bicolor cable body facilitates circuit identification, featuring excellent oxidation resistance and bending resistance. Widely used for board-to-board or board-to-wire signal connections in consumer electronics, industrial control, instrumentation, and automotive electronics, it boasts UL certification and high cost-effectiveness, with outstanding market potential in both domestic and foreign trade.

Feature：

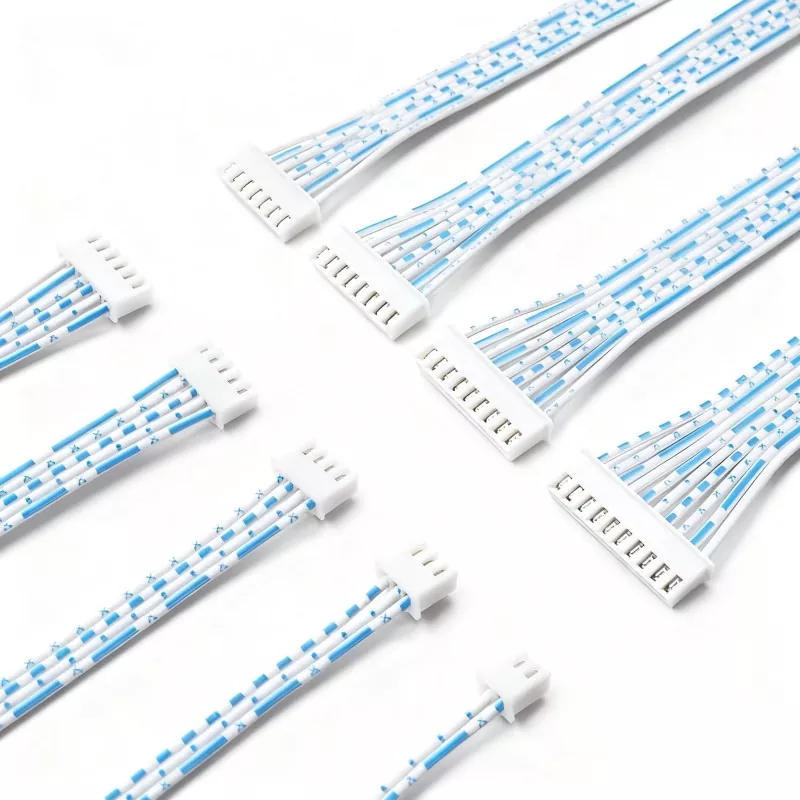

The XH2.54 UL2468-24AWG blue-and-white flat cable assembly adopts the 24AWG specification (with a conductor cross-sectional area of approximately 0.2 mm²). Its conductors feature a stranded structure composed of 11×0.12 mm or 7×0.203 mm multi-strand tinned copper wires, delivering both excellent oxidation resistance and flexibility. The insulation layer is made of eco-friendly PVC material, complying with the UL94 flame-retardant standard, with a rated temperature range of -20℃~80℃ and a rated voltage of 300V. It is paired with XH series connectors with a pin pitch of 2.54 mm, compatible with multi-pin specifications ranging from 2P to 16P. The connector housing is crafted from UL94-V0 grade PA66, and the terminals adopt a tin-plated phosphor bronze process, ensuring a contact resistance of ≤20 mΩ and an insulation resistance of ≥1000 MΩ. Featuring blue-and-white dual-color identification, the cable assembly allows for clear differentiation between signal transmission lines and power supply lines, effectively reducing the error rate during wiring and subsequent maintenance.

Application

The JYE XH2.54 UL2468-24AWG blue-and-white flat cable assembly has a wide range of applications. It can be used as internal signal connection wiring for printers, scanners and smart home devices in the consumer electronics sector; signal transmission lines for PLC modules, sensors and servo drives in the industrial control field; inter-board connection cables for oscilloscopes, multimeters and other equipment in the instrumentation category; as well as low-voltage signal lines for vehicle navigation systems, driving recorders and similar devices in the automotive electronics industry. With the widespread popularity of the Internet of Things (IoT), Industry 4.0 and new energy equipment, the market demand for standardized signal cable assemblies continues to grow.

Electro-Optical Characteristics
