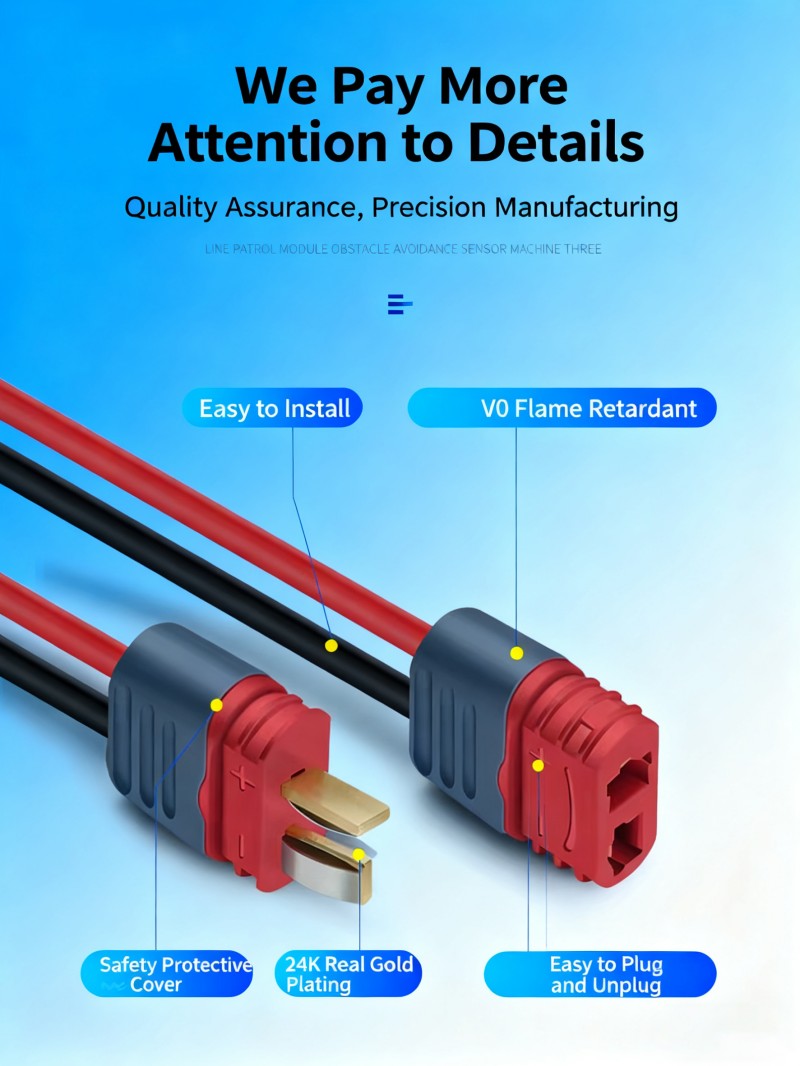

The AM1015B T-type terminal connector silicone wire harness is a harness commonly used for high-current connections and is widely applied in electric smart scooters, lithium batteries, and other fields. The AM1015B terminal connector typically uses PA (polyamide) as the insulating material, which provides good insulation performance and mechanical strength. Its metal parts are made of gold-plated copper, which can effectively reduce contact resistance and improve conductivity and corrosion resistance.
The AM1015B T-type terminal connector silicone harness is a high-reliability connector assembly designed for high-current branching, wide-temperature tolerance, safety, and easy installation. Its terminals use PA insulated housings (UL94 V 0 flame-retardant) and gold-plated copper materials, featuring a rated current of 20A (16AWG), 600V voltage withstand, ≤5mΩ low contact resistance, and IP40 protection. The T-shaped anti-slip design allows for quick plug-and-play branching. It also offers low-smoke, halogen-free properties, UV and ozone resistance, and flexibility for easy bending. Overall, it is suitable for scenarios requiring frequent plug-in/out and high-current transmission under extreme conditions, such as electric scooters, lithium battery packs, and inverters.
The M1015B T-type terminal connector with silicone wire is designed with core advantages of high current carrying capacity, wide temperature resistance and weatherability, high insulation safety, and easy installation and wiring. It is suitable for scenarios involving high-frequency plugging/unplugging and high current, such as electric scooters and lithium battery packs. The insulating housing is made of PA (polyamide), offering high mechanical strength and UL94 V-0 flame resistance. Metal terminals are mostly copper with gold or tin plating, featuring low contact resistance (≤5mΩ), oxidation and corrosion resistance, suitable for humid and high-temperature conditions. The rated current is approximately 20A (16AWG, △<85℃), with a voltage resistance of 600V DC, insulation resistance ≥100MΩ, protection rating IP40, and a plugging/unplugging lifespan of ≥500 cycles.
|
Part name |
Material name and specifications |
|
Product Model |
AM1015B |
|
Current |
25A |
|
Rated voltage |
DC 500V |
|
Plating |
Gold Plated |
|
Plastic material |
PA66 |
|
Use time |
1000 times |
|
Fire rating |
UL94 V0 |
|
Temperature range |
-20℃to120℃ |
|
Wiring method |
welding |
|
Wire gauge |
16AWG-12AWG |
|

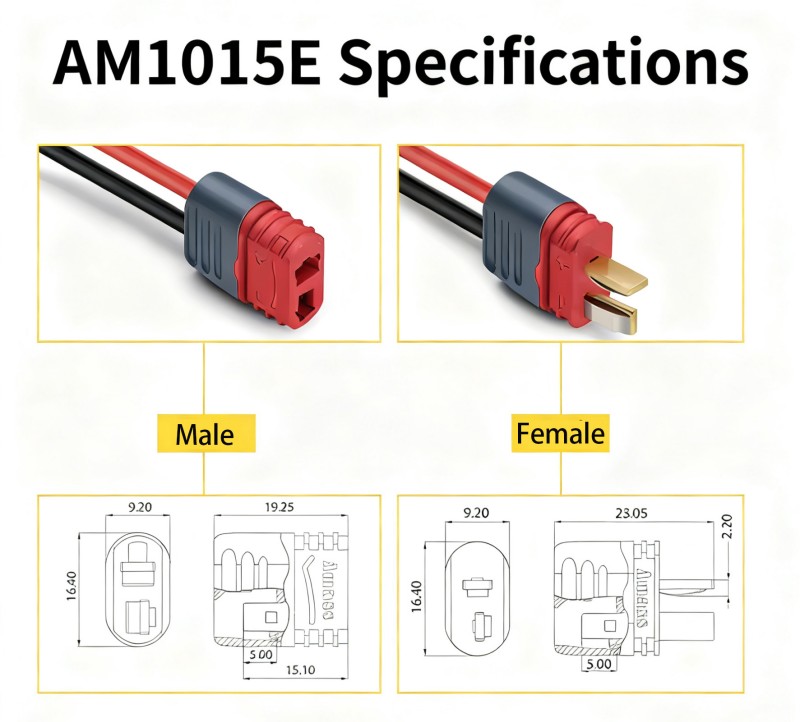

Gender |
Male,Female |
1.The fast response of your inquiry.
2.We provide OEM, ODM service, the details of product can be made as your requirement.
3.Strong technical force and excellent sales team to provide all-round service before sales and after sales.
4.Use selected raw materials, reliable quality and competitive price.
5.Over 10 years professional manufacturer experience of assembly connect cable in China.
6.Our factory is lS09001 certified.
7.Complete automatic equipment, high production efficiency and punctual delivery time.
8.Each of our products has been 100% instrumentally-tested to ensure the quality and function.
9.Small orders are available
10.Our products have extensive use and enjoy a wide market all over the world.
11.For the sake of customers, strive to achieve a win-win situation, hope to establish a long-term cooperative relationship.
