How Do Pin Headers Improve Electronic Connections?

Abstract: Pin headers are crucial components in electronic systems, offering reliable interconnections between circuit boards and peripheral devices. This article explores the design, applications, advantages, and selection criteria of pin headers, providing practical guidance to engineers, designers, and electronics enthusiasts. Shenzhen JYE Technology Co., LTD. specializes in high-quality pin headers to meet diverse industrial needs.

Table of Contents

• Introduction to Pin Headers
• Types of Pin Headers
• Advantages of Using Pin Headers
• Applications of Pin Headers
• Selecting the Right Pin Header
• Installation Tips
• FAQ About Pin Headers
• Conclusion & Contact

Introduction to Pin Headers

Pin headers are rows of metal pins mounted on a plastic base, commonly used for connecting printed circuit boards (PCBs) with wires, connectors, or other boards. They provide a simple, reliable way to create detachable or permanent electrical connections in electronic devices. Pin headers can vary in pin spacing, pin number, and orientation, offering flexibility in circuit design.

Types of Pin Headers

Understanding the types of pin headers helps in selecting the right component for a project:

• Single Row Pin Headers: Consist of a single line of pins, suitable for compact layouts.

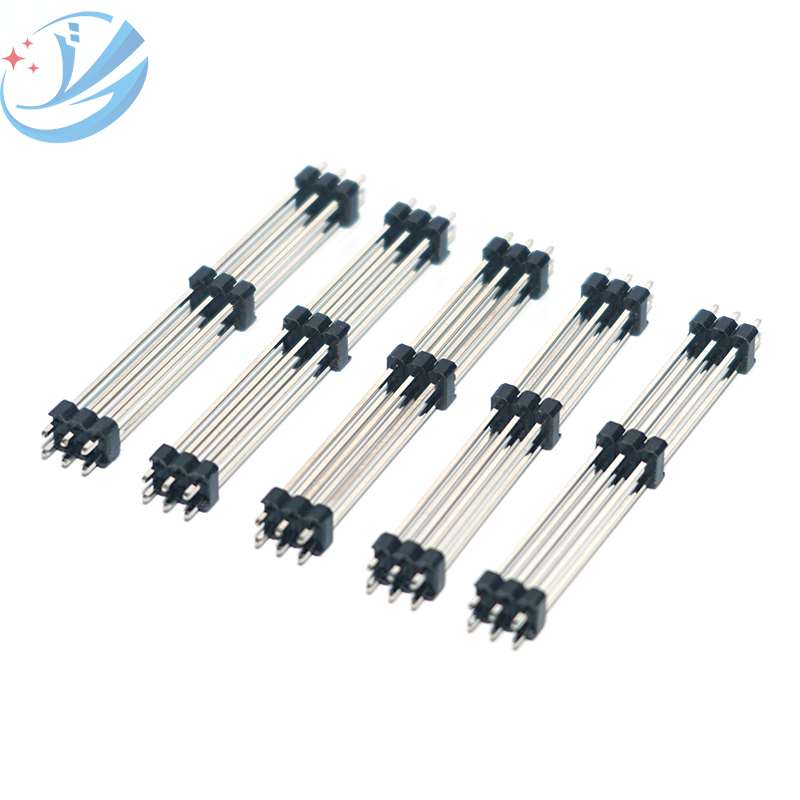

• Double Row Pin Headers: Feature two parallel lines of pins, providing higher connectivity.
• Straight Pin Headers: Pins are perpendicular to the PCB, commonly used in vertical connections.
• Right Angle Pin Headers: Pins are bent at 90 degrees for horizontal connections.
• Shrouded Headers: Include a plastic cover to prevent misalignment or short circuits.

Advantages of Using Pin Headers

Pin headers offer multiple benefits for electronic design:

• Reliable Connections: Firm mechanical and electrical connections reduce signal loss.
• Modularity: Allow easy attachment and removal of modules without soldering changes.
• Compact Design: Efficient use of PCB space while maintaining connectivity.
• Cost-Effective: Economical solution for prototyping and production.
• Customization: Available in different sizes, pin counts, and materials.

Applications of Pin Headers

Pin headers are widely applied across industries, including:

• Embedded systems and microcontroller boards
• Consumer electronics like smart devices and home appliances
• Industrial automation and robotics
• Computer motherboards and expansion cards
• Prototyping and testing circuits

Selecting the Right Pin Header

Choosing the correct pin header requires attention to key factors:

• Pin Count: Match the number of required connections in your circuit.
• Pitch Size: Standard spacing is 2.54mm, but options vary for high-density designs.
• Current Rating: Ensure the header can handle the expected electrical load.
• Mounting Style: Through-hole or surface mount based on PCB design.
• Material Quality: Consider corrosion resistance and durability for industrial applications.

Installation Tips

Proper installation ensures long-term reliability:

• Align the header pins carefully with the PCB holes.
• Use soldering techniques appropriate for the pin type to avoid cold joints.
• For modular designs, consider headers with shrouds to guide connectors.
• Test connections after assembly to verify electrical continuity.

FAQ About Pin Headers

Q1: Can pin headers be reused?
A1: Yes, many pin headers can be reused if removed carefully without bending the pins.

Q2: What is the standard pin pitch?
A2: The most common pitch is 2.54mm (0.1 inch), though other pitches are available for high-density boards.

Q3: How do I choose between single-row and double-row headers?
A3: Single-row headers are suitable for compact circuits; double-row headers are ideal for higher connectivity needs.

Q4: Are there high-current pin headers?
A4: Yes, industrial-grade pin headers are designed to carry higher currents with proper plating and thickness.

Conclusion & Contact

Pin headers are fundamental components that improve the reliability, modularity, and efficiency of electronic circuits. Choosing the right type, material, and installation method can significantly enhance device performance. Shenzhen JYE Technology Co., LTD. offers a wide range of high-quality pin headers and female headers to suit various industrial and prototyping needs. For more information and personalized solutions, contact us today and elevate your electronic designs.
